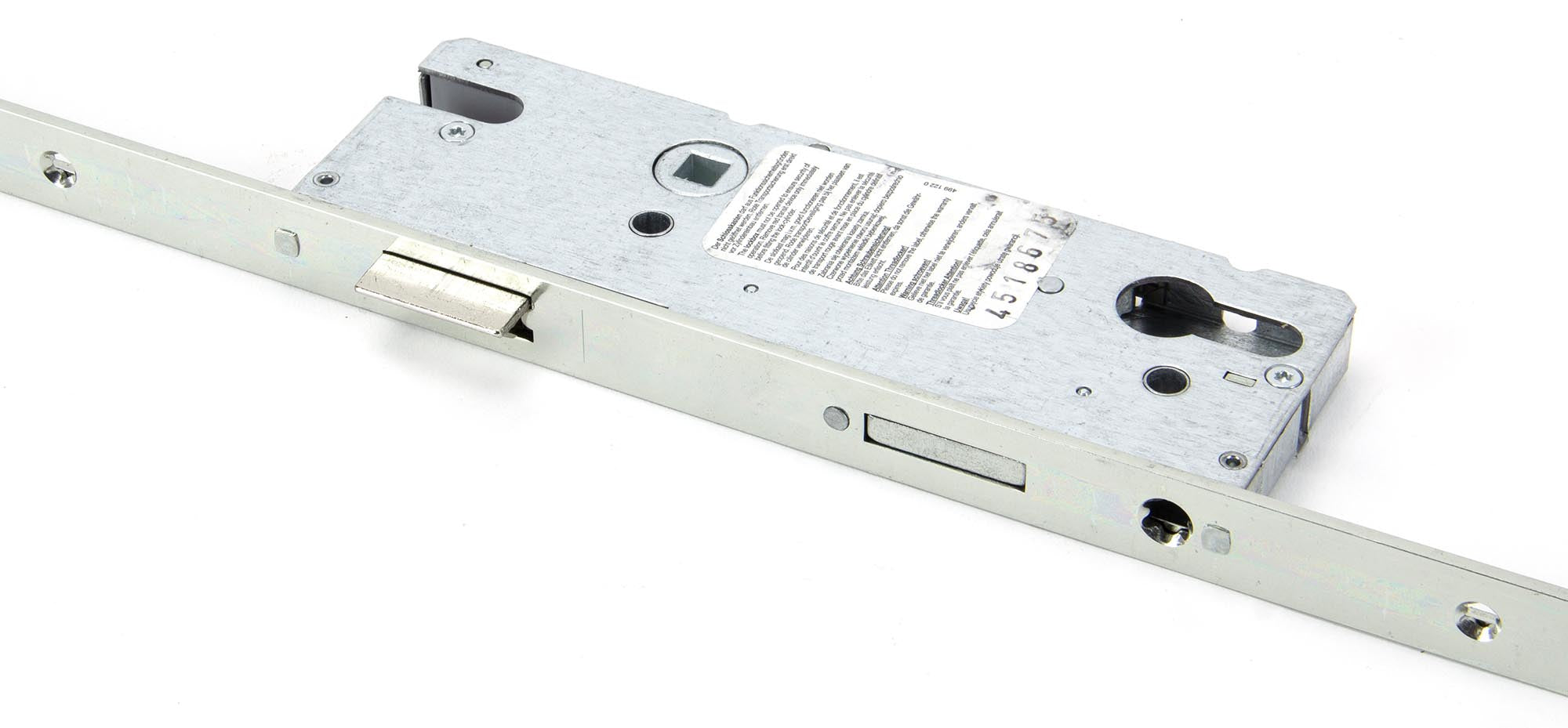

BZP Winkhaus Thunderbolt Espag Lock
SKU:
92146
Description
For use with our 92mm centre espagnolette locking handle sets.

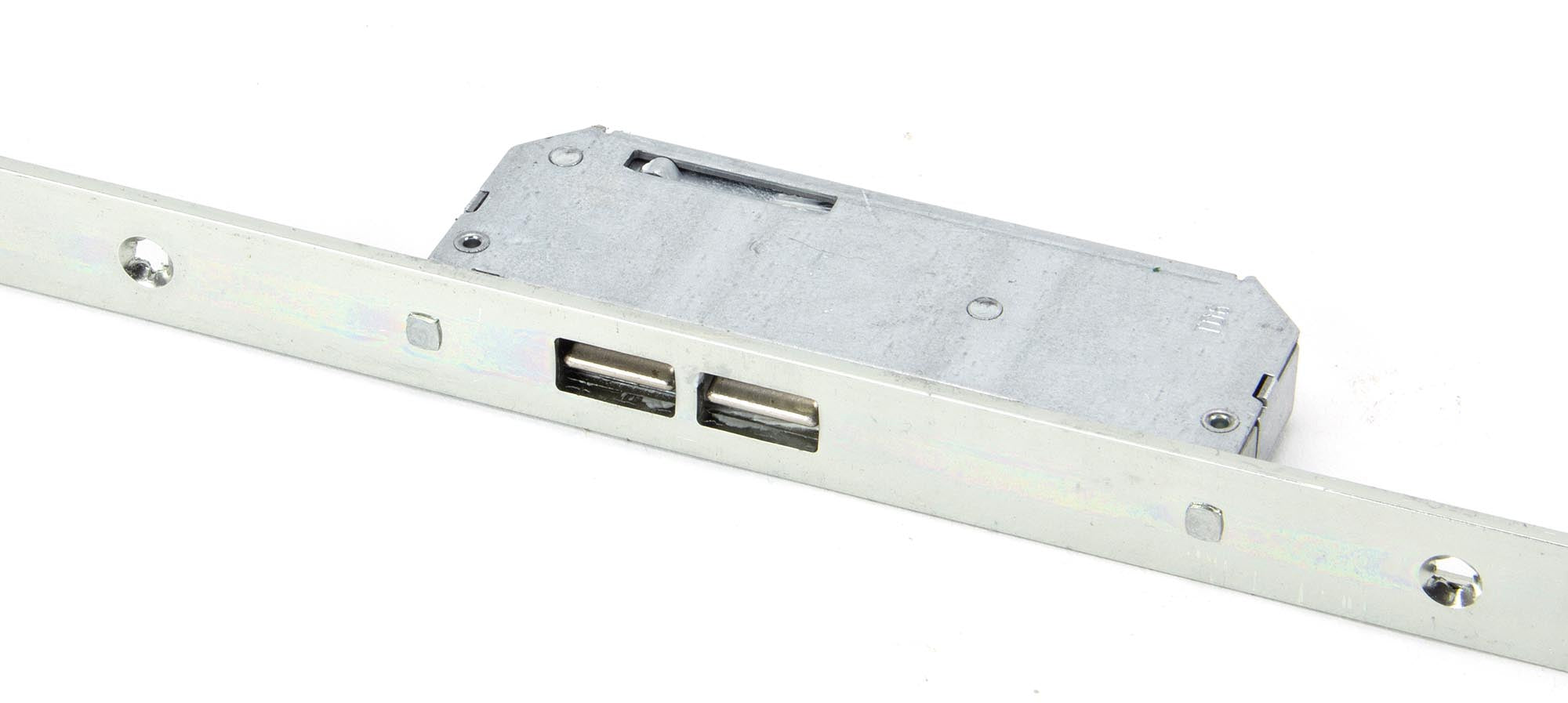

- Solid twin tapered deadbolts in the upper and lower positions.
- 50% greater fitting tolerances compared to conventional hook locking systems.
- Min/max door height: 1925mm/2105mm.
- Please note 1 x euro cylinder needs to be purchased separately.
Dimensions
Centre Case Size: 63mm x 186mm x 15mm
Deadbolt Lock Box Size: 45mm x 113mm x 15mm
Backset: 45mm
Min/Max Door Height: 1925mm - 2105mm
Technical Drawing
Finish
BZP, or Bright Zinc Plated, products are made from steel and plated with a thin layer of zinc using an electric current, to protect against rusting and oxidisation.
